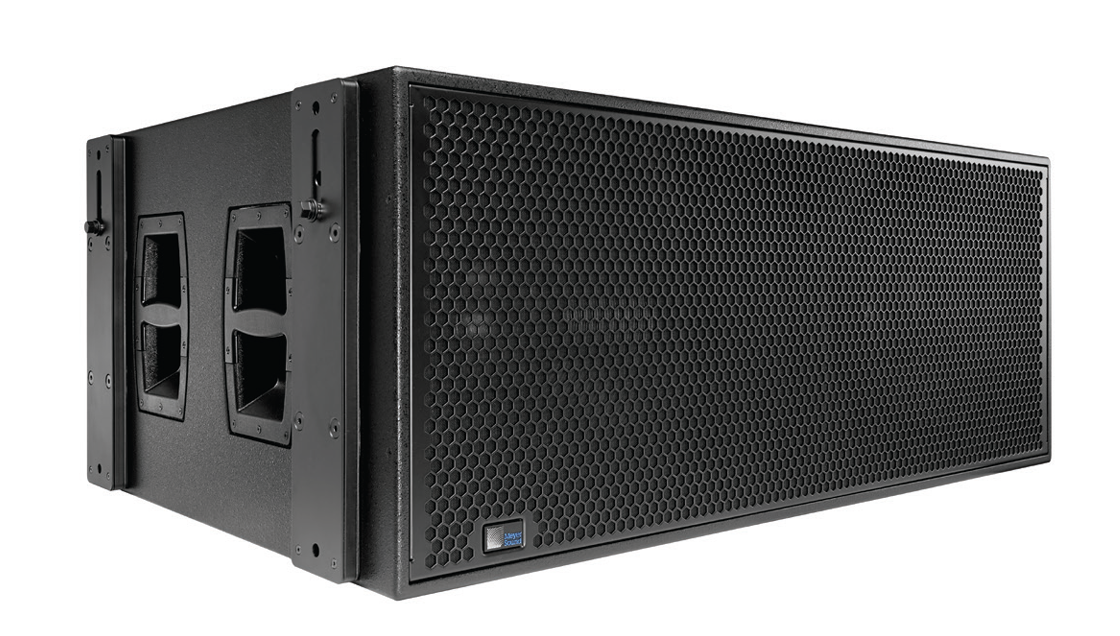

1100LFC – PKG 48 (TEST)

Description

The 1100‑LFC low‑frequency control element is a self‑powered loudspeaker defined by its sonic linearity in reproducing lowfrequency transients at high continuous output levels with very low distortion. This ultra‑low distortion, coupled with exceptional headroom and optimized rigging options, makes the 1100‑LFC a flexible tool for low‑end directional applications for large‑scale tours and installations. To guarantee optimum performance, design 1100‑LFC systems with Meyer Sound’s MAPP™ system design tool. This intuitive, cross‑platform application accurately predicts directional patterns, frequency and impulse responses, and linear peak SPL for 1100‑LFC systems, ensuring that systems deliver the required coverage and SPL. An optimally tuned, vented cabinet houses the 1100‑LFC’s two 18‑inch, long‑excursion cone drivers. The loudspeaker’s 28 Hz to 100 Hz operating frequency range complements LEO®, LEOPARD™, LYON™, JM‑1P, and other Meyer Sound loudspeakers, allowing it to integrate seamlessly with line arrays and curvilinear arrays. The unit’s power amplifier operates at voltages from 208 to 235 V AC, at 50/60 Hz. TruPower® limiting ensures maximum driver protection, minimizing power compression while yielding high constant output under high continuous and peak power conditions. A single, field‑replaceable module located on the rear of the cabinet contains the amplifier, control electronics, and power supply. The 1100‑LFC cabinet includes protective plastic skids on the bottom that securely align with the cabinet’s top slots. Units are stackable normally or reversed for cardioid configurations.
